Online SDI analyzer for water quality

Brand	KeLinMu	Price range	Face to face discussion
Classification	Fluoride ion	Origin category	domestic
Instrument type	Online type	Application Fields	Environmental protection, chemical industry, agriculture, comprehensive

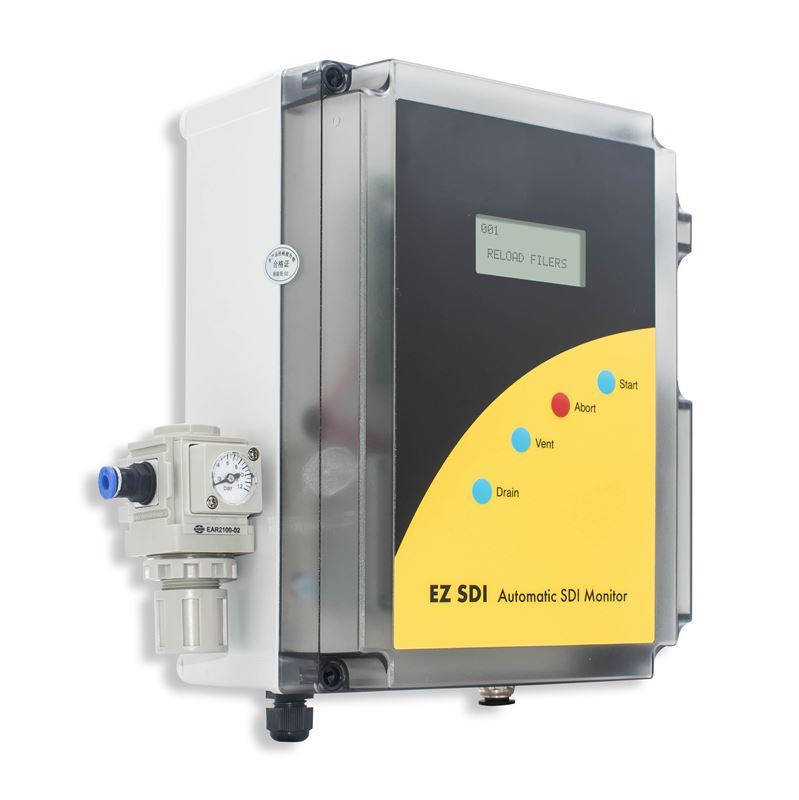

T9278M online SDI analyzer

Typical applications
Water supply plants, sewage treatment plants, steel/metallurgy, petroleum/chemical, electricity, papermaking, textile/printing and dyeing, brewing, fine chemicals, pharmaceuticals, coal mines, food and beverage, electronics/circuits, electroplating/surface engineering, energy, seawater desalination, ships, boilers, others

Instrument features
Technical specifications of SDI pollution index tester:
Measurement range: 0.2-6.67 (SDI15min)
Accuracy: ± 0.2 (SDI15min)
Pre membrane pressure: 0.207Mpa
Display panel: LCD display, 4 operation and control touch keys
Water sample container: 150mL
Micro porous filter: 25mm in diameter
Filter membrane specification: φ 25mm, pore size 0.45 μ m ± 0.02 μ m
Protection level: IP66, NEMA 4X

measuring principle
The detector is suitable for online installation and can also be moved for use, and users can choose the installation method according to the on-site usage. The recommended usage and installation method is online, which is a fixed installation method online, which is in line with the standard configuration of automatic SDI instruments.
During the installation of the SDI pollution word count analyzer, users can set the sampling port on the pipeline before entering the reverse osmosis system. The usual practice is to connect a three-way valve on the main pipeline, and a valve needs to be installed on the sampling pipeline to open and close the sampling. To prevent debris from entering the pipeline of the automatic SDI detector, it is recommended to install a pipeline filter. The SDI measuring instrument sampling tube is directly or indirectly connected to the pipeline filter through a conversion joint. The sampling pipeline is too long, and a bypass with an overflow valve must be installed to maintain a long flow of water inside the sampling pipeline to prevent debris from settling.
The SDI tester integrates the functions of bypass, venting, and drainage into one drainage pipe, which is a 10mm transparent plastic pipe. The drainage pipe is ultimately inserted into the drainage ditch.
